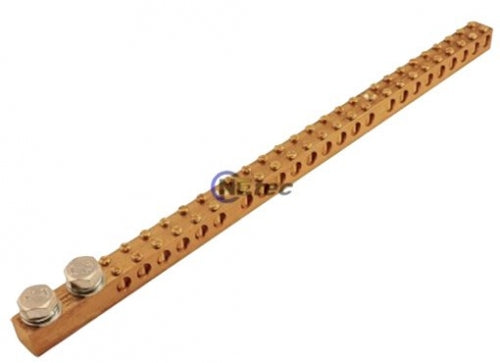

250-amp 24-way neutral/earth bar 35mm tunnels 2xM10 studs

The Australian-manufactured earthing bar boasts 24 x 35mm tunnels.

FEATURES

• 24-pole
• 2 x M10 studs
• Includes flat and spring washers
• Tunnels accept up to 35mm2 cables
• Standard numbering
• Made to AS/NZS5112:2015 standard

SPECIFICATIONS

Current rating: 250 amp

Brass section: 15.88mm x 15.88mm

RoHS compliant: Yes

Length: 360.5mm

Mount hole type/apart: M5 countersunk/(2) 120mm

Stud spacing: 25mm

Units: Each
