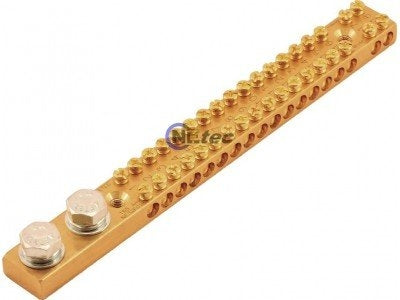

165-amp neutral/earth bar - 2 x M8 studs, 18-way

The Australian-made 165-amp neutral/earth bar has two M8 studs and two screws a tunnel.

FEATURES

• Accepts up to 16mm2 cables
• Flat and spring washers included
• Two screws a tunnel
• 18-way

SPECIFICATIONS

Current rating: 165 amp

Brass section: 19mm x 9.5mm

RoHS compliant: Yes

Length: 185mm

Mount hole type: M5 countersunk - 120mm

Stud distance apart: 21.5m

Standard: AS/NZS5112:2015

Units: Each
