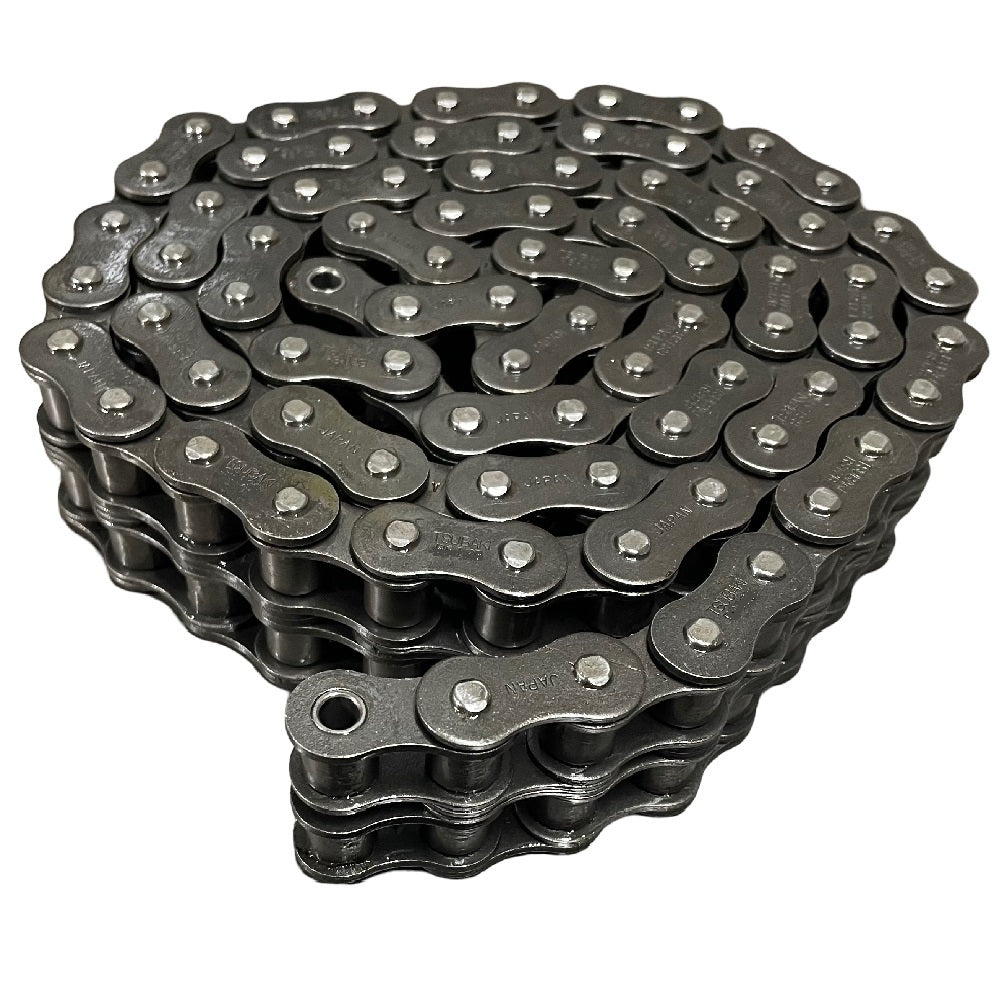

1" American standard ASA80-2 Tsubaki double-strand roller chain

This double-strand roller chain is designed for light industrial and agricultural uses.

This chain, connecting links and offset links is available in sizes from ASA 25 to ASA 200. Simplex, duplex and triplex executions are available.

Royce Cross Group will cut chain to your specified length for sizes up to RS16B and RS80 in Tsubaki single-strand and double-strand types.

FEATURES

• Easy handling
• Quality chain
• Long wear

TECHNICAL DATA

ANSI No: 80-2

Pitch: 19.05mm

Roller diameter: 15.88mm

Width between roller link plates: 15.88mm

Pin from pin head to CL: (L1) 30.9mm; (L2) 33.9mm

Transverse pitch: 29.3mm

Average tensile strength: 157kN

Maximum allowable load: 25kN

Average weight: 5.27kg/m

Number of links per box: 120

Box length: Sold per foot, available in 10 foot packs. This chain is available to be cut to your specified length.
