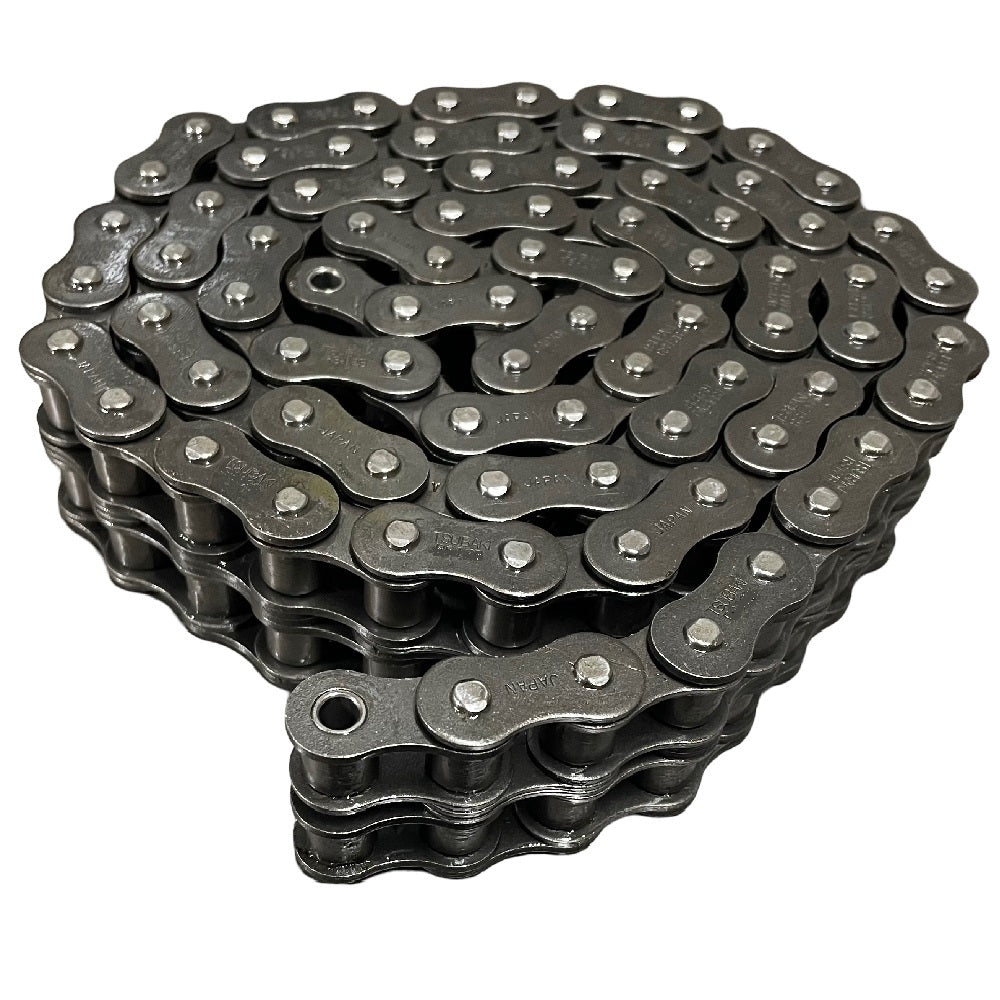

1/4" American standard ASA25-2 Tsubaki double-strand chain

This double-strand roller chain is designed for light industrial and agricultural uses.

It is interchangeable with other chains conforming to ANSI standards.

This chain, connecting links and offset links is available in sizes from ASA 25 to ASA 200. Simplex, duplex and triplex executions are available.

Royce Cross Group will cut chain to your specified length for sizes up to RS16B and RS80 in single- strand and double-strand types.

FEATURES

• Easy handling
• Quality chain
• Long wear

TECHNICAL DATA

ANSI No: 25-2

Pitch: 6.35mm

Roller diameter: 3.30mm

Width between roller link plates: 3.18mm

Link plate thickness: 0.75mm

Link plate height: 5.84mm

Pin diameter: 2.31mm

Transverse pitch: 6.4mm

Average tensile strength: 9.41kN

Average weight: 0.27kg/m

Number of links per box: 480

Quantity: Sold per foot, available in 10 foot packs. This chain is available to be cut to your specified length.
