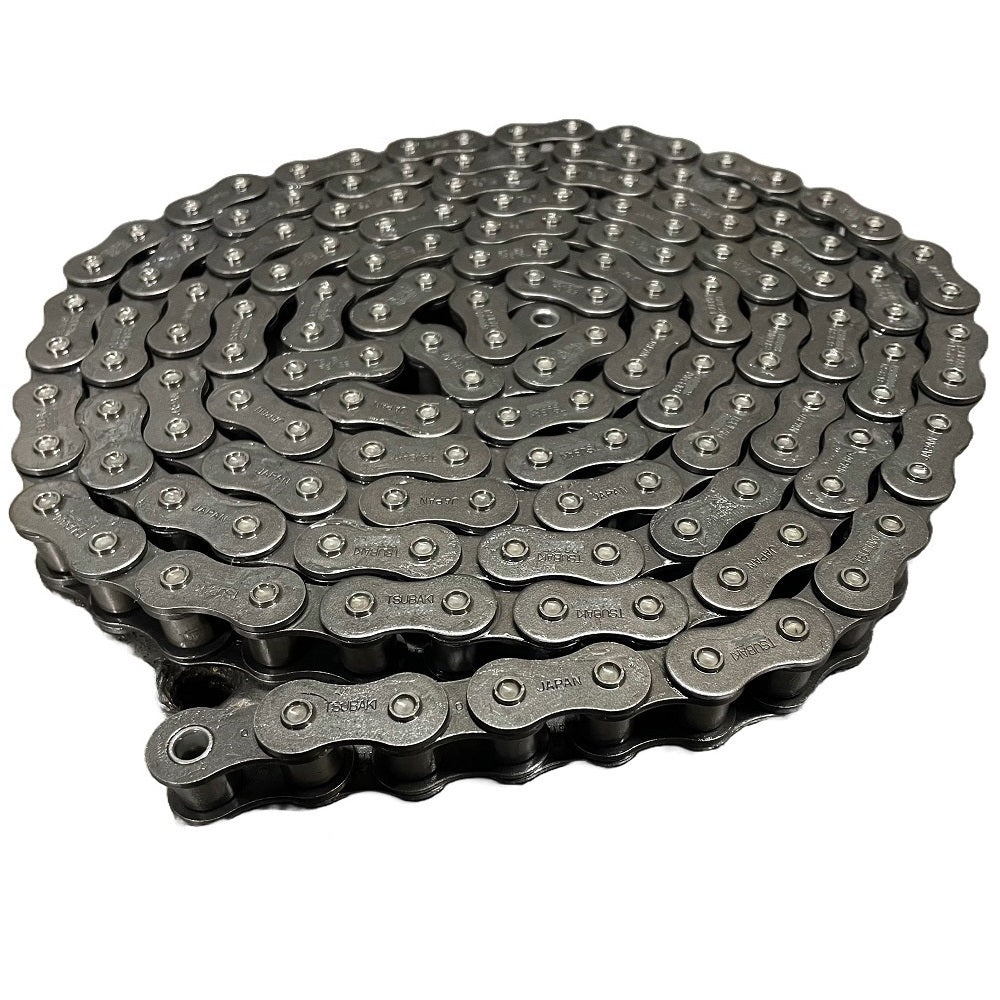

1-3/4" American standard ASA 140 Tsubaki single- strand roller chain

This single-strand roller chain is designed for light industrial and agricultural uses.

This chain, connecting links and offset links is available in sizes from ASA 25 to ASA 200. Simplex, duplex and triplex executions are available.

Royce Cross Group will cut chain to your specified length for sizes up to RS16B and RS80 in Tsubaki single-strand and double-strand types.

FEATURES

Easy handling

Quality chain

Long wear

TECHNICAL DATA

ANSI No: 140

Pitch: 44.45mm

Roller diameter: 25.40mm

Width between roller link plates: 25.40mm

Link plate thickness: 5.6mm

Link plate height: 42.2mm

Pin diameter: 12.71mm

Average tensile strength: 216kN

Maximum allowable load: 40,200N

Average weight: 7.49kg/m

Number of links per unit: 80

Units: Sold per foot, available in 10 foot packs only. This chain is available to be ordered to your specified length.
