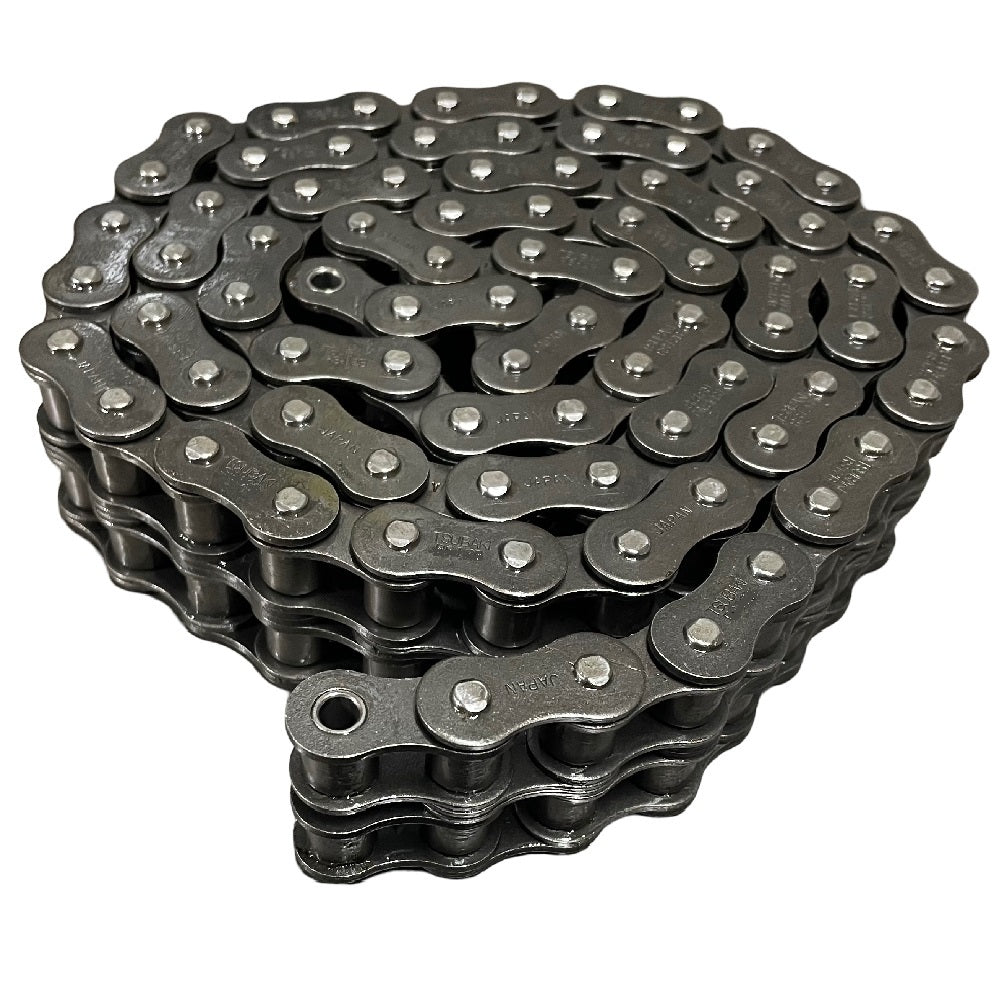

1/2" American standard ASA40-2 Tsubaki double-strand roller chain

The double-strand connecting link suits ASA 40 double-strand chain. The link plate and pin are a slip type fit for ease of assembly.

This chain, connecting and offset links is available in sizes from ASA 25 to ASA 200. Simplex, duplex and triplex executions are available.

Royce Cross Group will cut chain to your specified length for sizes up to RS16B and RS80 in Tsubaki single- strand and double-strand types.

FEATURES

• Easy handling
• Quality chain
• Long wear

TECHNICAL DATA

ANSI No: 40-2

Pitch: 12.70mm

Roller diameter: 7.94mm

Width between roller link plates: 7.95mm

Pin from pin head to CL: (L1) 15.45mm; (L2) 17.15mm

Transverse pitch: 14.4mm

Average tensile strength: 38.2kN

Average weight: 1.27kg/m

Number of links per box: 240

Box length: Sold per foot, available in 10 foot packs. This chain is available to be cut to your specified length.
