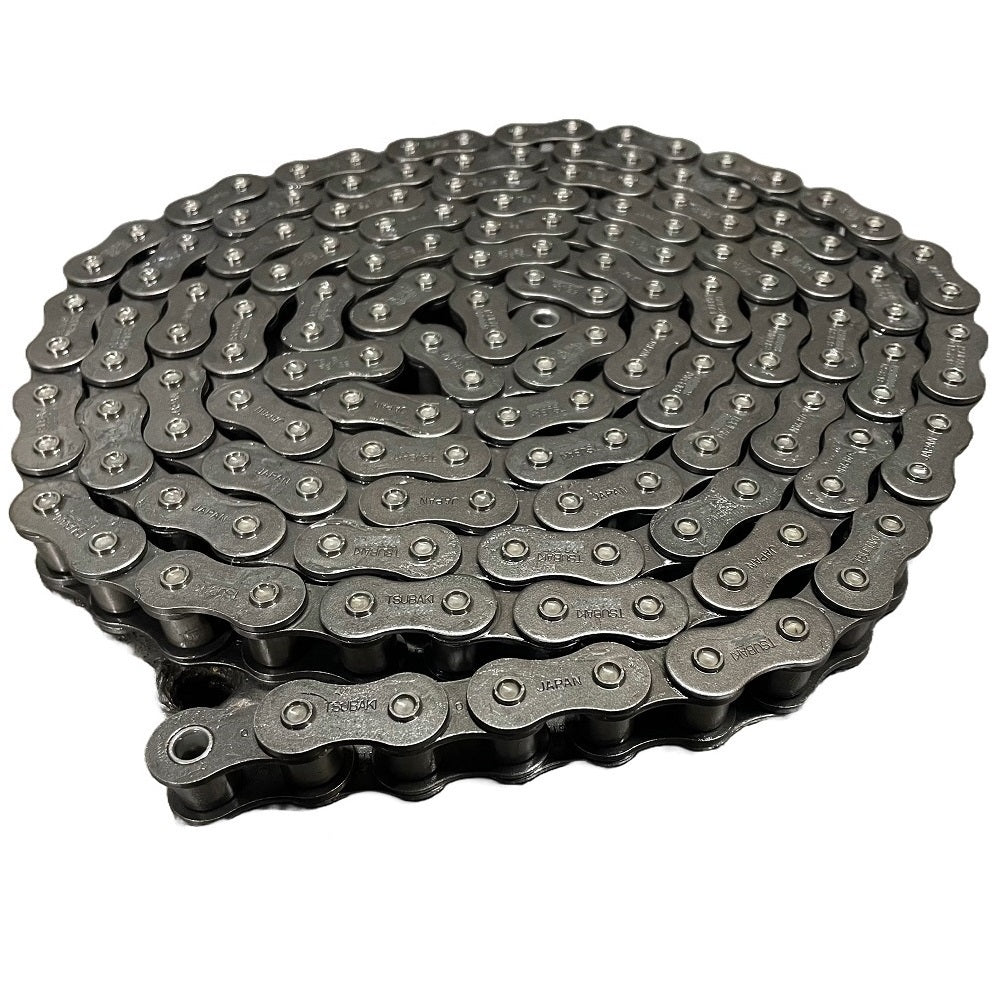

1-1/4" American standard ASA 100 Tsubaki single- strand roller chain

This single-strand roller chain is designed for industrial and agricultural uses.

It is interchangeable with other chains conforming to ANSI standards.

This chain, connecting links and offset links is available in sizes from ASA 25 to ASA 200. Simplex, duplex and triplex executions are available.

Royce Cross Group will cut chain to your specified length for sizes up to RS16B and RS80 in Tsubaki single-strand and double-strand types.

FEATURES

• Easy handling
• Quality chain
• Long wear

TECHNICAL DATA

ANSI No: 100

Pitch: 31.75mm

Roller diameter: 19.05mm

Width between roller link plates: 19.05mm

Link plate thickness: 4mm

Link plate height: 30.1mm

Pin diameter: 9.54mm

Average tensile strength: 118kN

Maximum allowable load: 22,600N

Average weight: 3.99kg/m

Number of links per box: 96

Box length: Sold per foot, available in 10 foot packs. This chain is available to be cut to your specified length.
